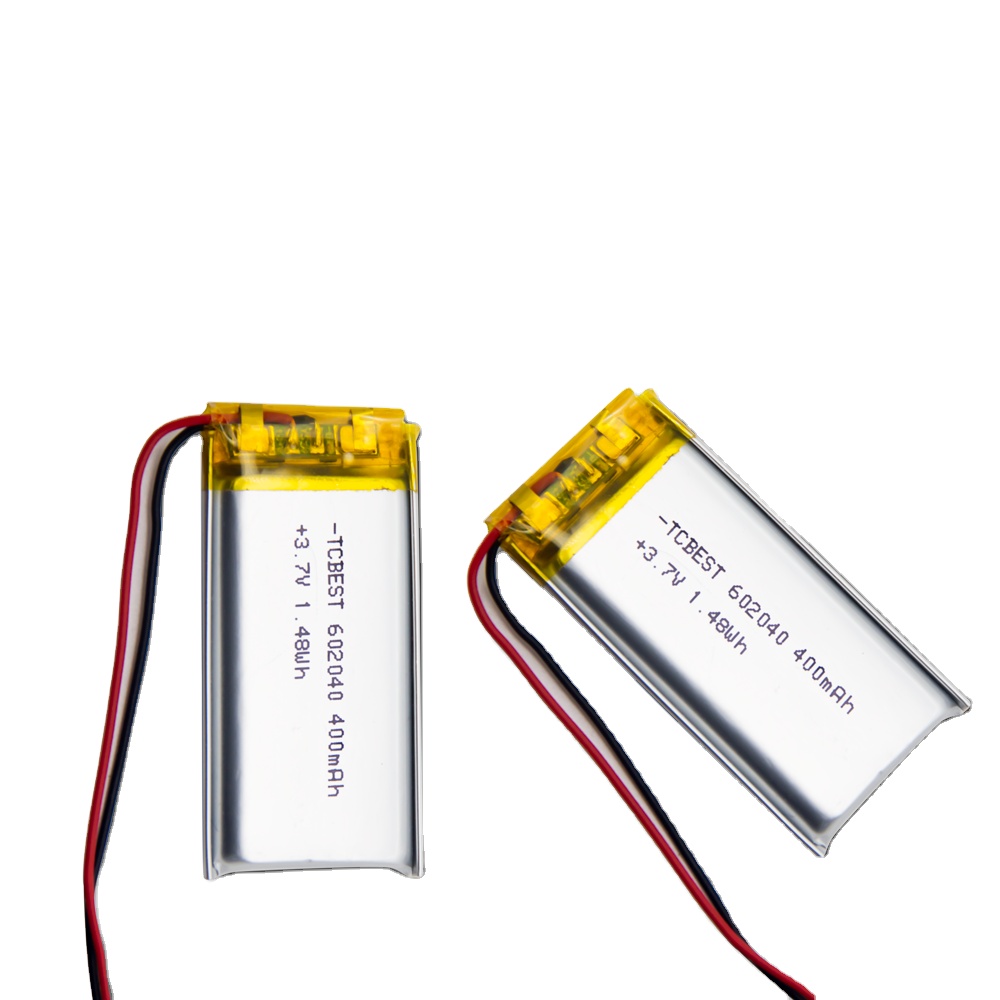

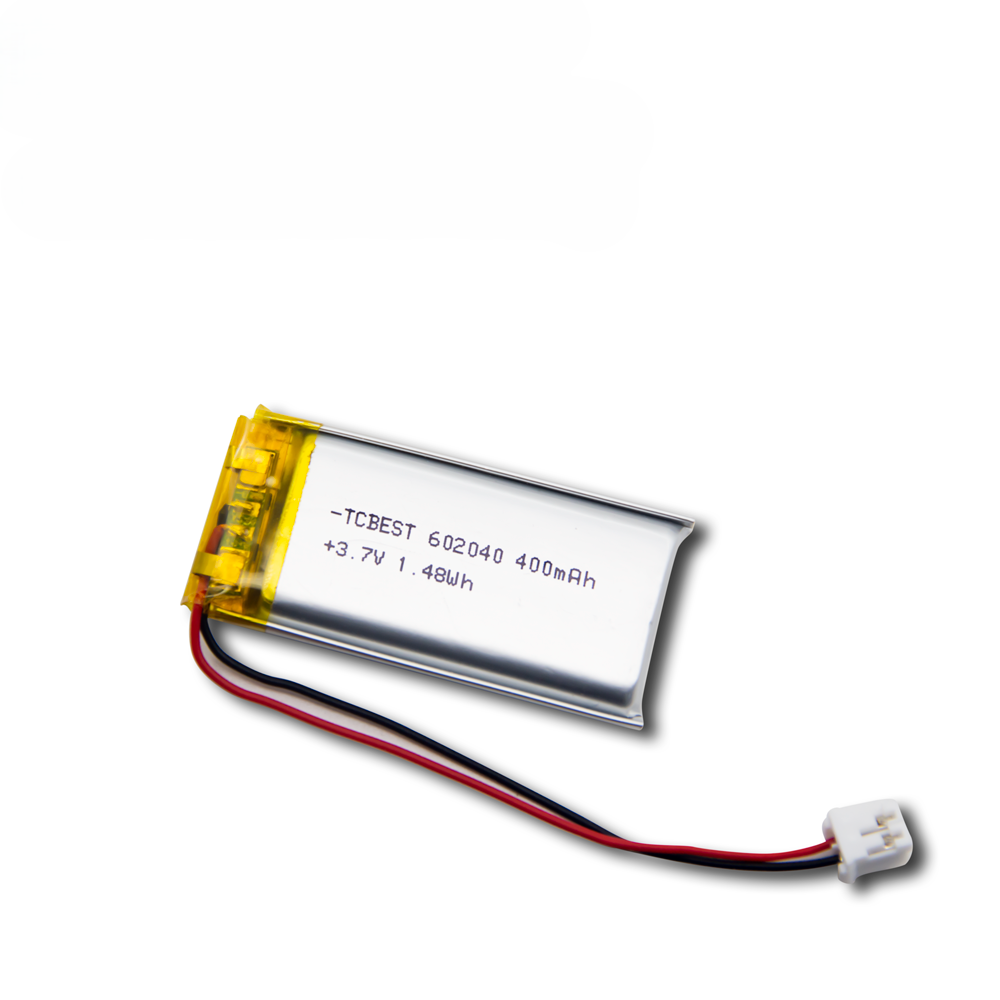

Customize Li-po Battery 3.7V 400mAh 602040

ITEM VALUE
Battery type 3.7V 400mAh LiPo Battery
Model 602040
Cell Size 6.0 x 20 x42.5mm
Voltage 3.7V
Capacity 450mAh, 1.665Wh
Protection circuit module(PCM) Yes
Thermistor(NTC) 10k-NTC/100k-NTC
Wires yes
Connector JST PHR-2 ( support custom)
Recharging current  Standard 0.5C max 1C
Discharge current Standard 0.5C max 1C
Charging temperature  0°C - 45°C
Store temperature  -20°C-60°C

Description

photobank (8).jpg

Battery Performance

※ Light Weight

lithium Polymer cell is 40% lighter than the same specification of the steel shell liquid lithium cel, and 20% lighter than aluminum shell liquid lithium cell.
※ High Capacity

10-15% more than the same specification steel and 5%-10% more than aluminum shell liquid lithium cell.
Excellent Discharge Performance
Lithium Polymer battery applies gelled electrolyte with stable discharge characteristics and higher discharge performance.
※ Long-life Cycles
Lithium Polymer battery can have more than 500 times life cycle in normal operation.
Excellent Safety Performance
short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.
※ Low Internal Resistance, No Memory Affects
※ Customized Shape
Battery's thickness and shape can be customized according to your needs.

Certification

photobank (8).jpg
