| ITEM | VALUE | ||||||

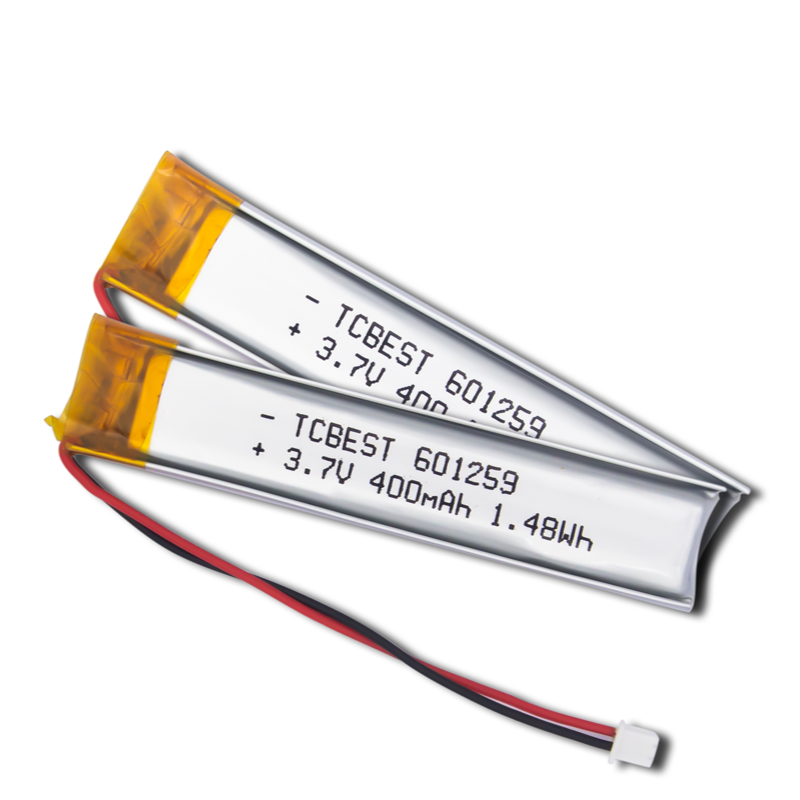

| Battery type | 3.7V 400mAh LiPo Battery | ||||||
| Model | 601259 | ||||||
| Cell Size | 6.0 x 12 x59mm | ||||||
| Voltage | 3.7V | ||||||
| Capacity | 400mAh, 1.48Wh | ||||||
| Protection circuit module(PCM) | Yes | ||||||
| Thermistor(NTC) | 10k-NTC/100k-NTC | ||||||
| Wires | yes | ||||||
| Connector | JST PHR-2 ( support custom) | ||||||
| Recharging current | Standard 0.5C max 1C | ||||||
| Discharge current | Standard 0.5C max 1C | ||||||
| Charging temperature | 0°C - 45°C | ||||||
| Store temperature | -20°C-60°C |

※ Light Weight
lithium Polymer cell is 40% lighter than the same specification of the steel shell liquid lithium cel, and 20% lighter than aluminum shell liquid lithium cell.
※ High Capacity
10-15% more than the same specification steel and 5%-10% more than aluminum shell liquid lithium cell.
※ Excellent Discharge Performance
Lithium Polymer battery applies gelled electrolyte with stable discharge characteristics and higher discharge performance.
※ Long-life Cycles
Lithium Polymer battery can have more than 500 times life cycle in normal operation.
※ Excellent Safety Performance
short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.
※ Low Internal Resistance, No Memory Affects
※ Customized Shape
Battery's thickness and shape can be customized according to your needs.
